ks0139 keyestudio EASY plug I2C 8x8 LED Matrix
Views:149times
文章附图


Introduction

What's better than a single LED? Lots of LEDs! A fun way to make a small display is to use an 8x8 matrix. This matrix uses a driver chip that does all the heavy lifting for you: They have a built in clock so they multiplex the display. They use constant-current drivers for ultra-bright, consistent color, 1/16 step display dimming, all via a simple I2C interface.

Note: this module needs to be used together with EASY plug control board.

Specification

Interface: Easy plug

Supply voltage: 4.5V-5.5V

Maximum display: 16*8

Size: 53*32mm

Weight: 6g

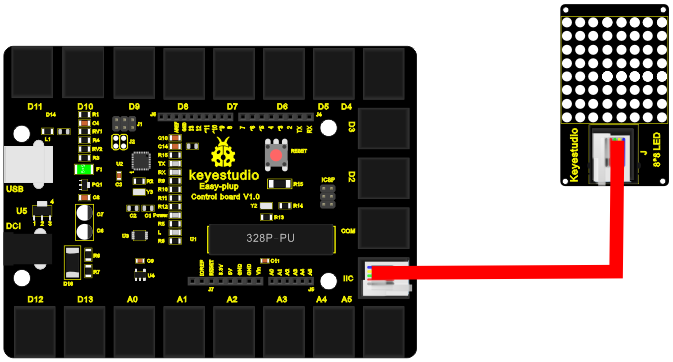

Connection Diagram

Sample Code

#include <Wire.h>  // Place file “Wire.h” under the directory “library” of Arduino

#include "Adafruit_LEDBackpack.h" // Place file “Adafruit_LEDBackpack.h” under the directory “library” of Arduino

#include "Adafruit_GFX.h"  // Place file “Adafruit_GFX.h” under the directory “library” of Arduino

#define _BV(bit) (1<<(bit))

Adafruit_LEDBackpack matrix = Adafruit_LEDBackpack();

uint8_t counter = 0;

void setup() {

 Serial.begin(9600);

 Serial.println("HT16K33 test");

 matrix.begin(0x70);  // pass in the address

}

void loop() {

 // paint one LED per row. The HT16K33 internal memory looks like

 // a 8x16 bit matrix (8 rows, 16 columns)

 for (uint8_t i=0; i<8; i++) {

   // draw a diagonal row of pixels

   matrix.displaybuffer[i] = _BV((counter+i) % 16) | _BV((counter+i+8) % 16)  ;

 }

 // write the changes we just made to the display

 matrix.writeDisplay();

 delay(100);


 counter++;

 if (counter >= 16) counter = 0;

}
